Add Picture(s) to Cycle Count Workflow

This section will demonstrate how to add image(s) to the Cycle Count workflow.

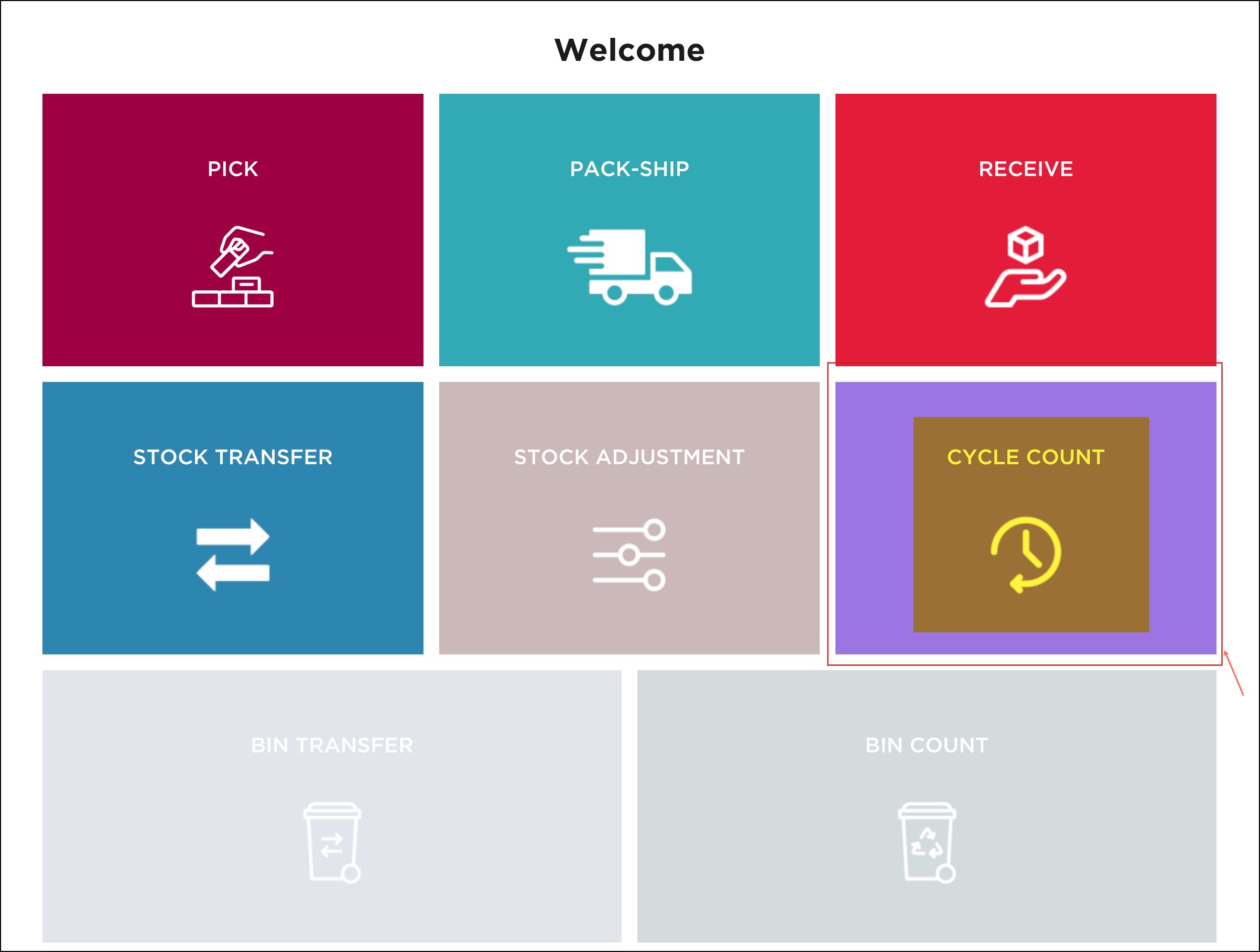

Click on the Cycle Count workflow on the home screen to begin.

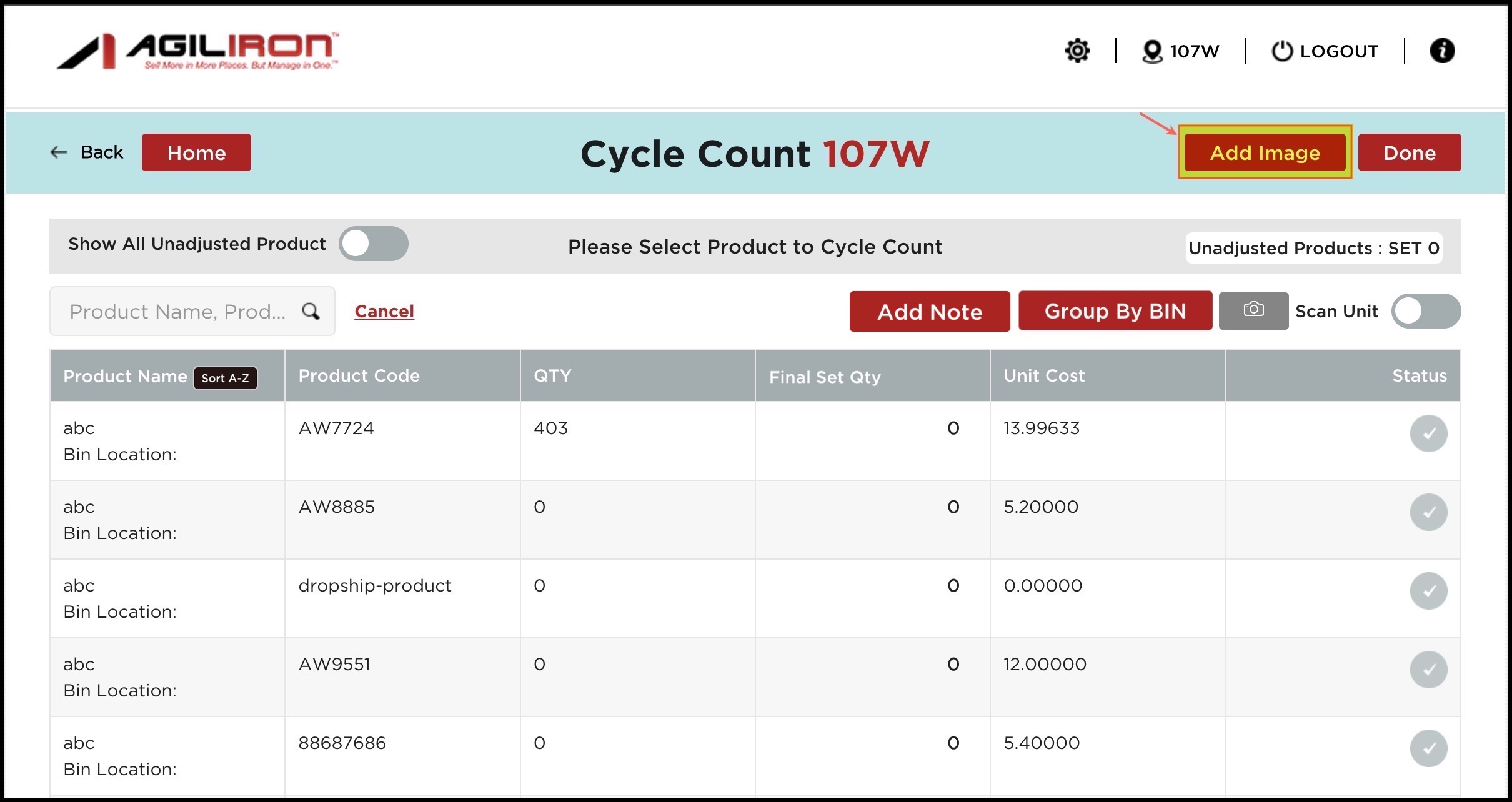

In the cycle count workflow, you can see the Add Image button, click on it.

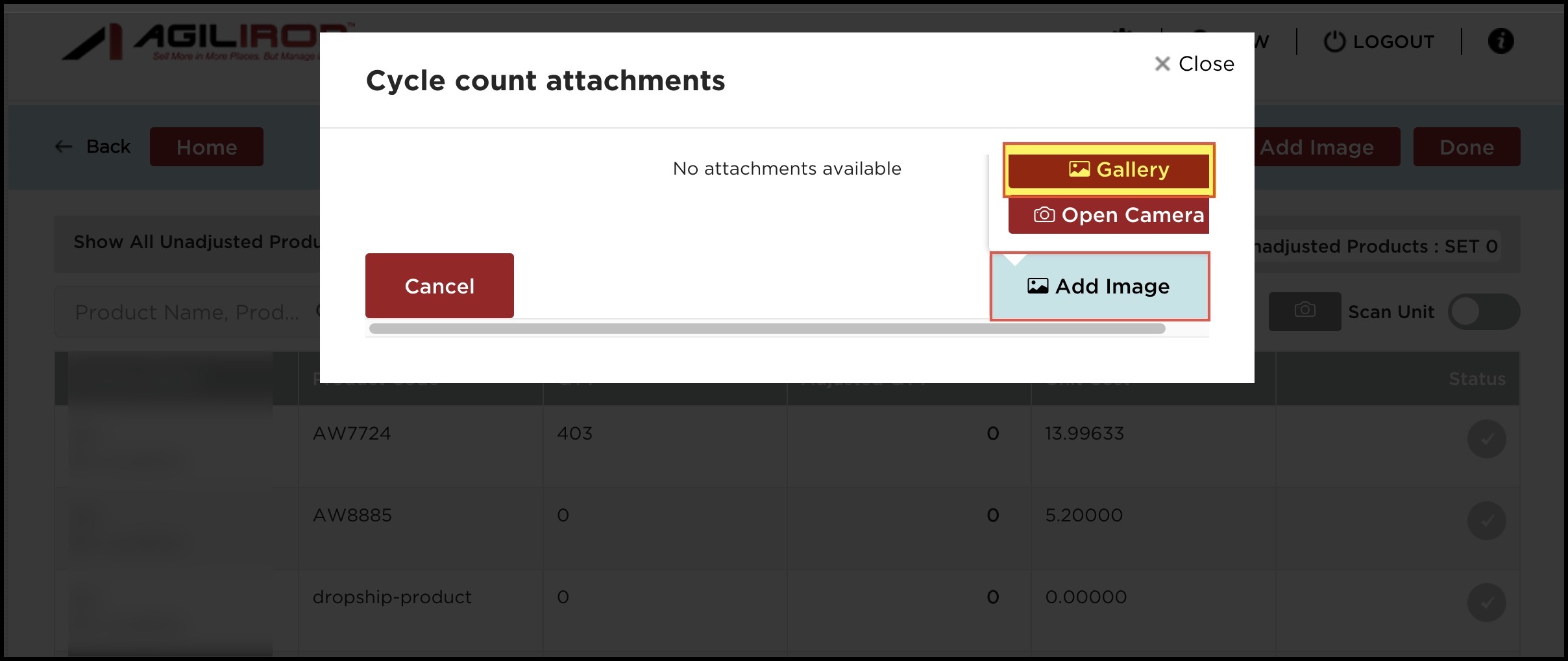

A pop-up will appear where you need to click on the Add Image button. You can either select from Gallery or Open your Device Camera to click and add image. For example - we've added image from Gallery.

Select the picture and click on Save.

Just by hovering on the image, you can view the name of the uploaded image (This is to identify the image in the back office -> Attachments module)
Add multiple images if needed by clicking on the Add Image button again.

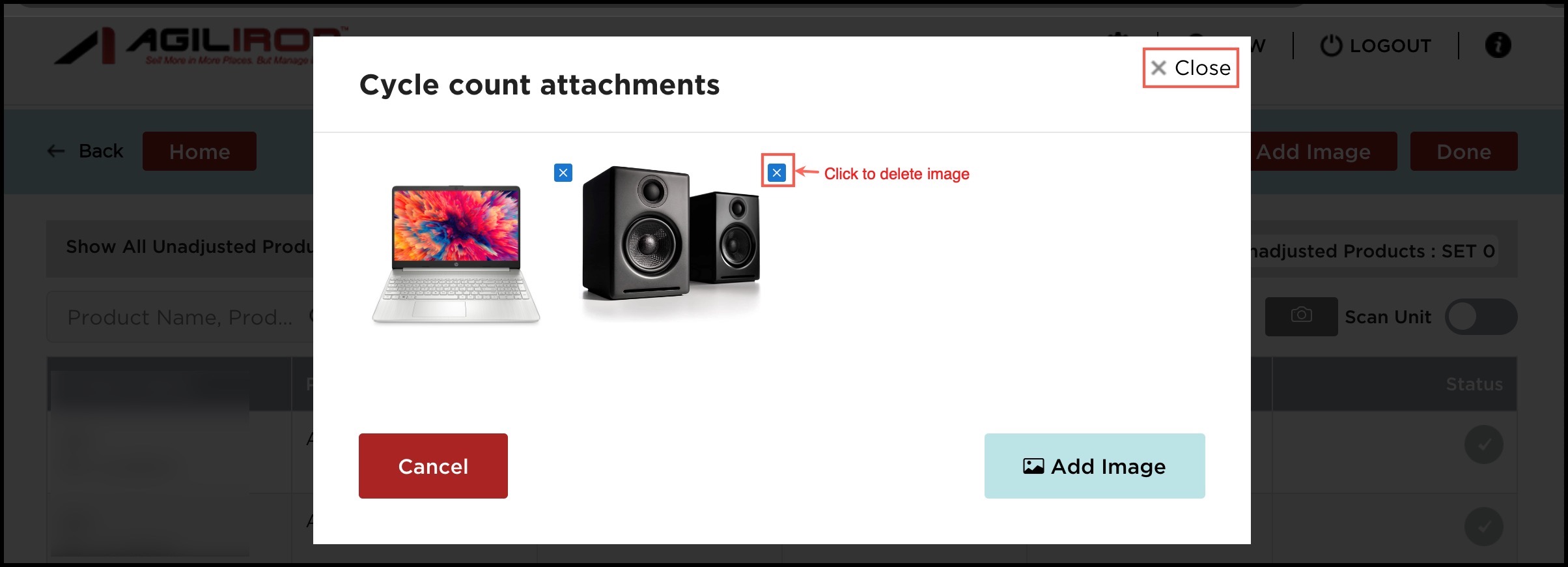

To delete any image uploaded, you can click on the "x" sign next to that particular image.
Now after you have uploaded the image/images, close the Cycle Count Attachments pop-up screen.

Now proceed with the Cycle Count inventory process

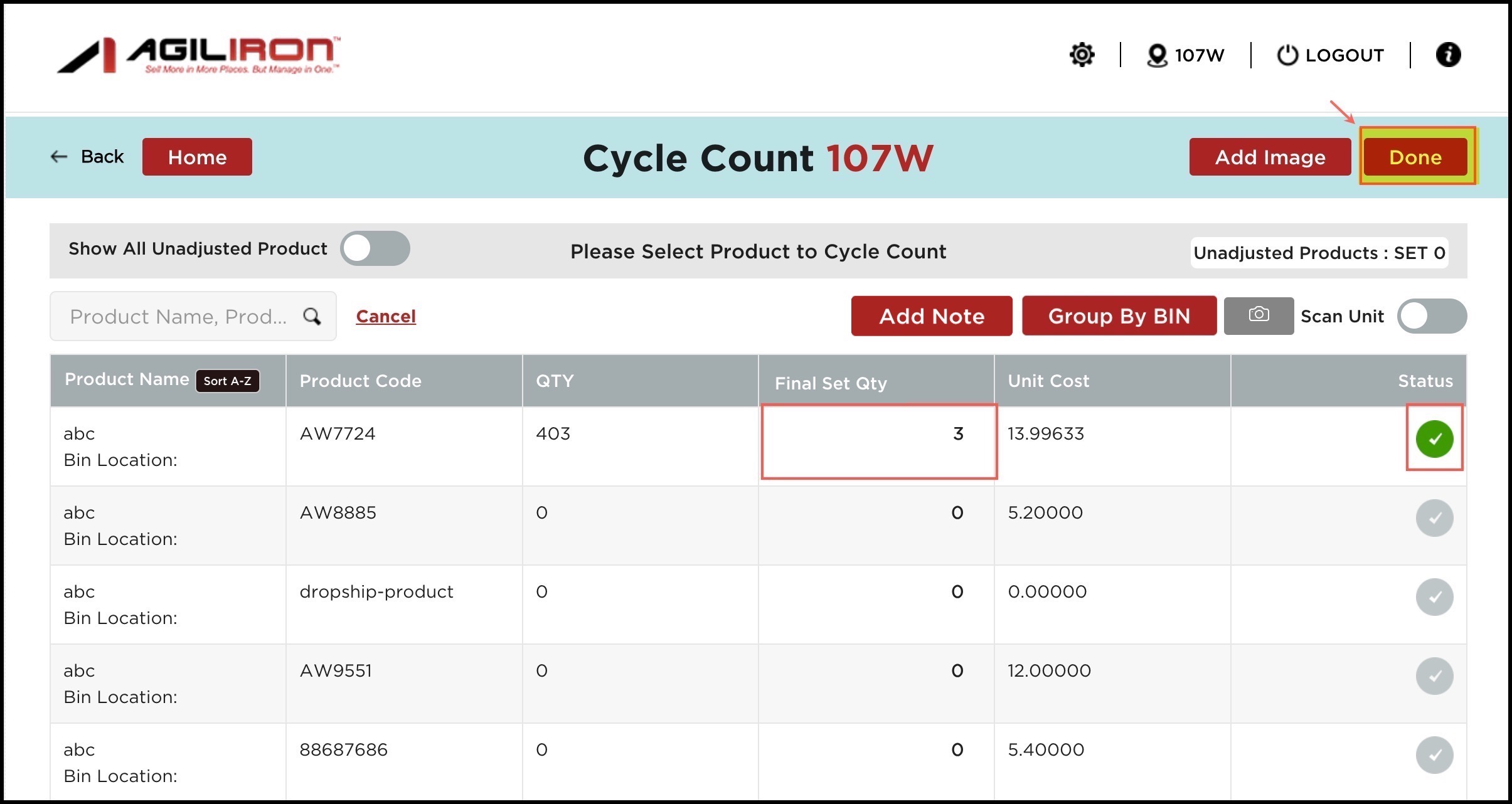

Once completed, click on Done

NOTE:

These images are maintained and associated with this Cycle Count. So without doing a cycle count if you sync inventory, those images won't get uploaded to the back office.
If you click “DONE” and then come back to the Cycle Count screen again, the previously added images will still appear in the dialog. Only once synced to Back Office, the Cycle Count associated images will be cleared.

On the home screen click on Sync Inventory Updates to Back Office button.
You will see a success message saying "Adjustment created successfully" with that particular product code.

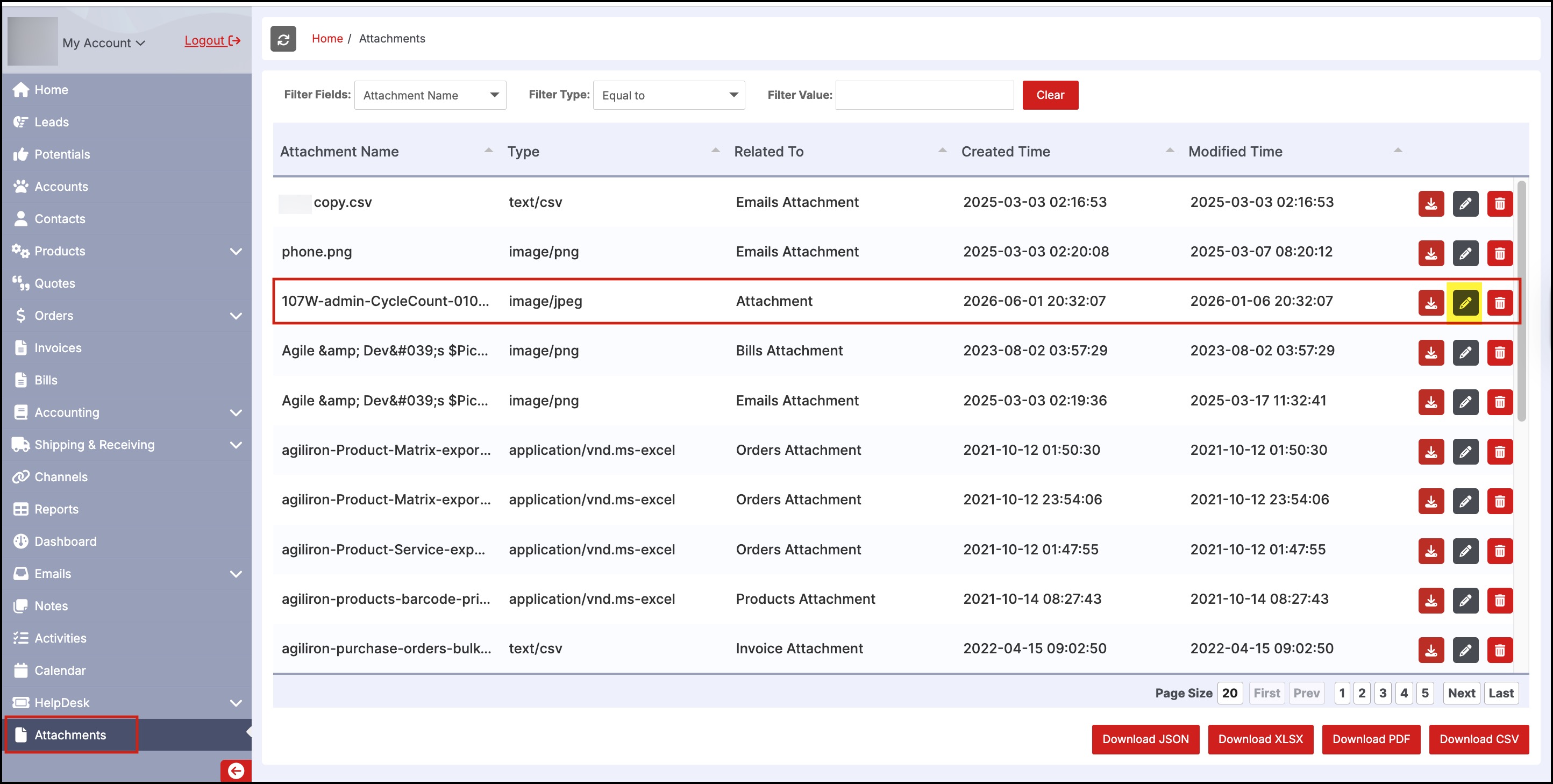

Now when you go to the Back office -> Attachment module, you can see the image/images that are added.
Click on the Edit icon to check the image name, if required.

You can identify the image by comparing it to the image name that you noted while you hovered over the image. (Check the screenshot where the image name is seen after hovering)
