Add New Product - Matrix Item
Even Matrix items can be added in the Cross-platform Warehouse app.

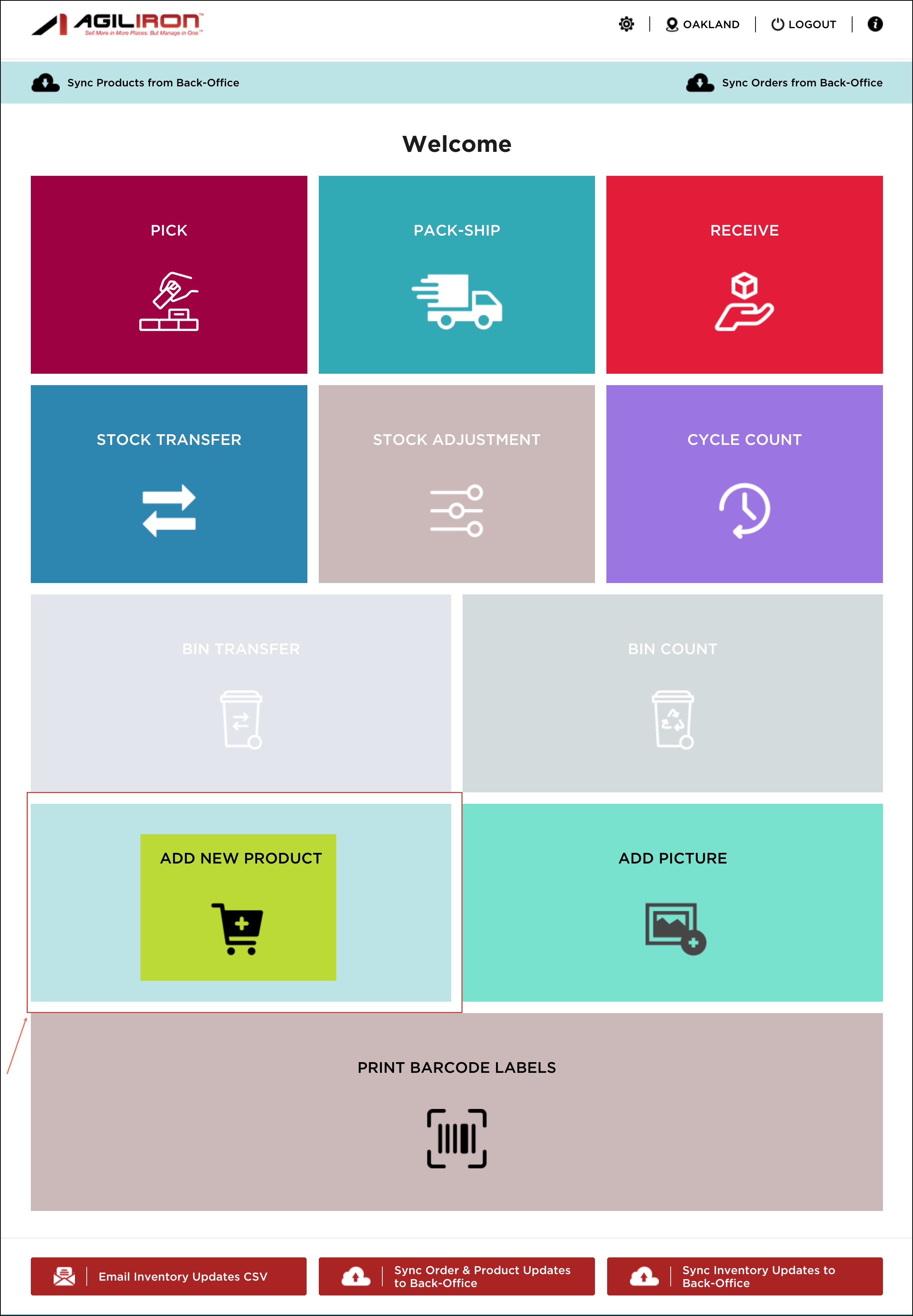

- On the home screen in the app, select the Add New Product.
![](https://files.readme.io/13812cf-add-products-1.jpg)
-

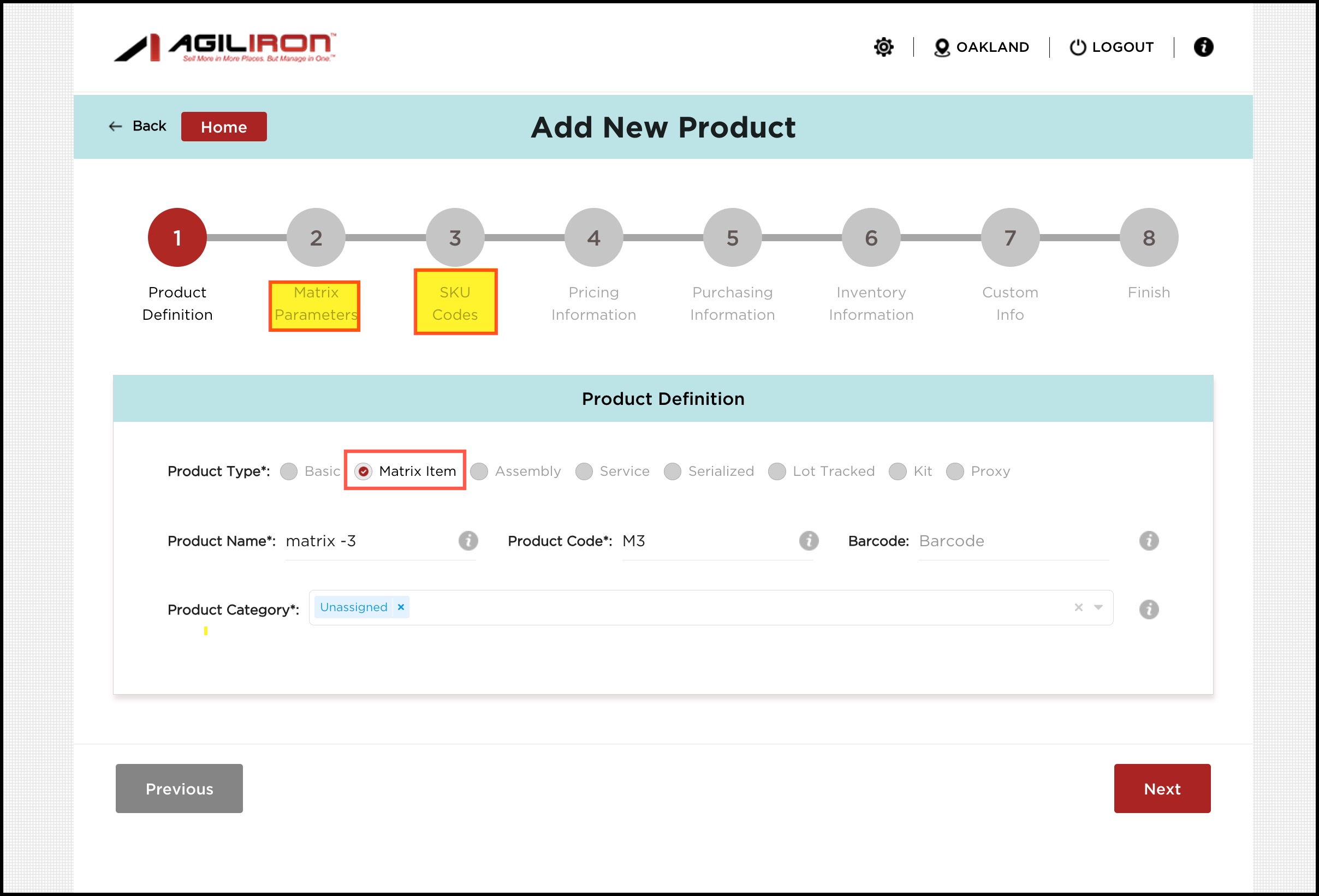

In the first step, Product Definition, when you enter matrix product details and select Matrix Item in Product Type, you can see additional steps added.
-
You can also add Product Image (or multiple product images) by clicking on the Add Image button. Take a picture with your device or add an image from the Photo Gallery.
-
Proceed by clicking on Next.
![](https://files.readme.io/a96ed72-add-prouct-new-matrix.jpg)
- In the next step, select the Matrix Parameters related to the product. You can select multiple parameters. Once done, click on Next.
![](https://files.readme.io/1aec93c-matrix-2.jpg)
- Next in this step, enter the SKU codes (mandatory) and barcodes (optional), related to each matrix item.
- Click on Next.
![](https://files.readme.io/667174e-matrix-3.jpg)
- In Pricing Info, enter the prices in Pricebooks that you want. Keep on scrolling the bar to the right, to see all the pricebooks.
- Click on Next.
![](https://files.readme.io/52553ab-matrix-4.jpg)
- Next, in Purchasing Info, you need to enter vendor information.
- Select at least one preferred vendor by tapping the preferred button next to a vendor. Multiple vendors can be added to a product, but only one can be selected as preferred.
- Click Next to continue.
![](https://files.readme.io/3c36622-matrix-5.jpg)
- In Inventory information, you can enter each item's quantity, unit cost, and bin location (optional) in respective stock locations.
- You can now add bin locations for the multiple Matrix parameters, you set. Click on the Bin Location Selector button.
![](https://files.readme.io/afde8d6-cross-wh-app-bin-loc-matrix-1.jpg)
This will bring up a popup with the list of Bin Locations and the Products housed in them.
- Multiple bin locations can be added by clicking on the Add button.
- After adding bin locations and quantity, click on Save.
![](https://files.readme.io/6233cee-cross-wh-app-bin-loc-matrix-2.jpg)
Note - For more details about Enable Bin Location Quantity - refer to Add New Product Guide -> Inventory Information step
- Click Next to continue.
![](https://files.readme.io/f4a1f11-cross-wh-app-bin-loc-matrix-3.jpg)
- If you want to enter the Custom Info, you can enter in this step or directly proceed to the last step.
![](https://files.readme.io/00fe027-matrix-7.jpg)
- Click "Finish" on the last screen.
- You can see the Product added successfully message.
![](https://files.readme.io/8a6212b-matrix-8.jpg)
![](https://files.readme.io/2d23eb6-matrix-9.jpg)

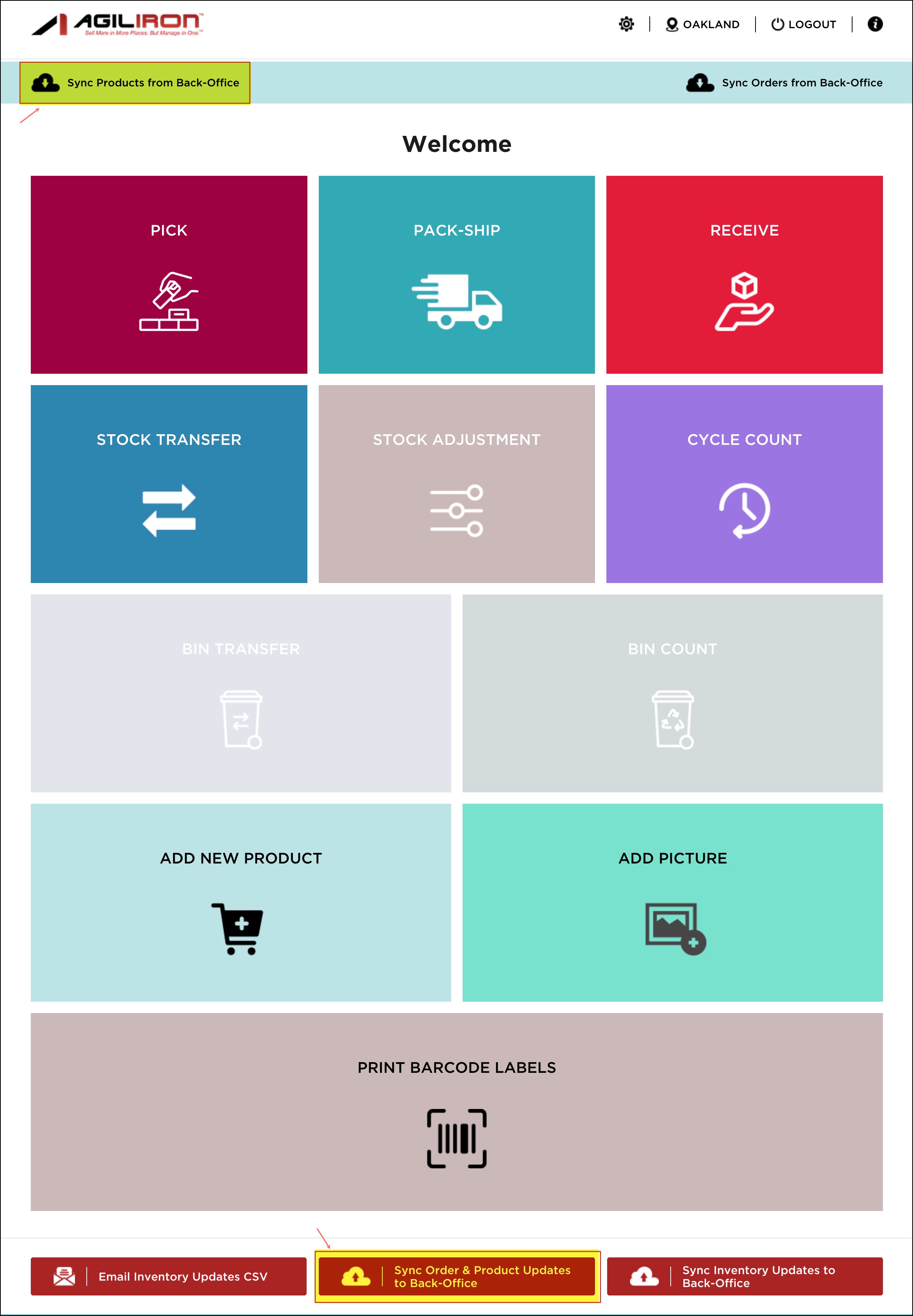

- Once the product has been created you will be returned to the home screen, click the "Sync Order & Product Updates to Back-Office" to update the back office with the new product. Then, select "Sync Products From Back-Office".
![](https://files.readme.io/03566b2-add-products-9.jpg)

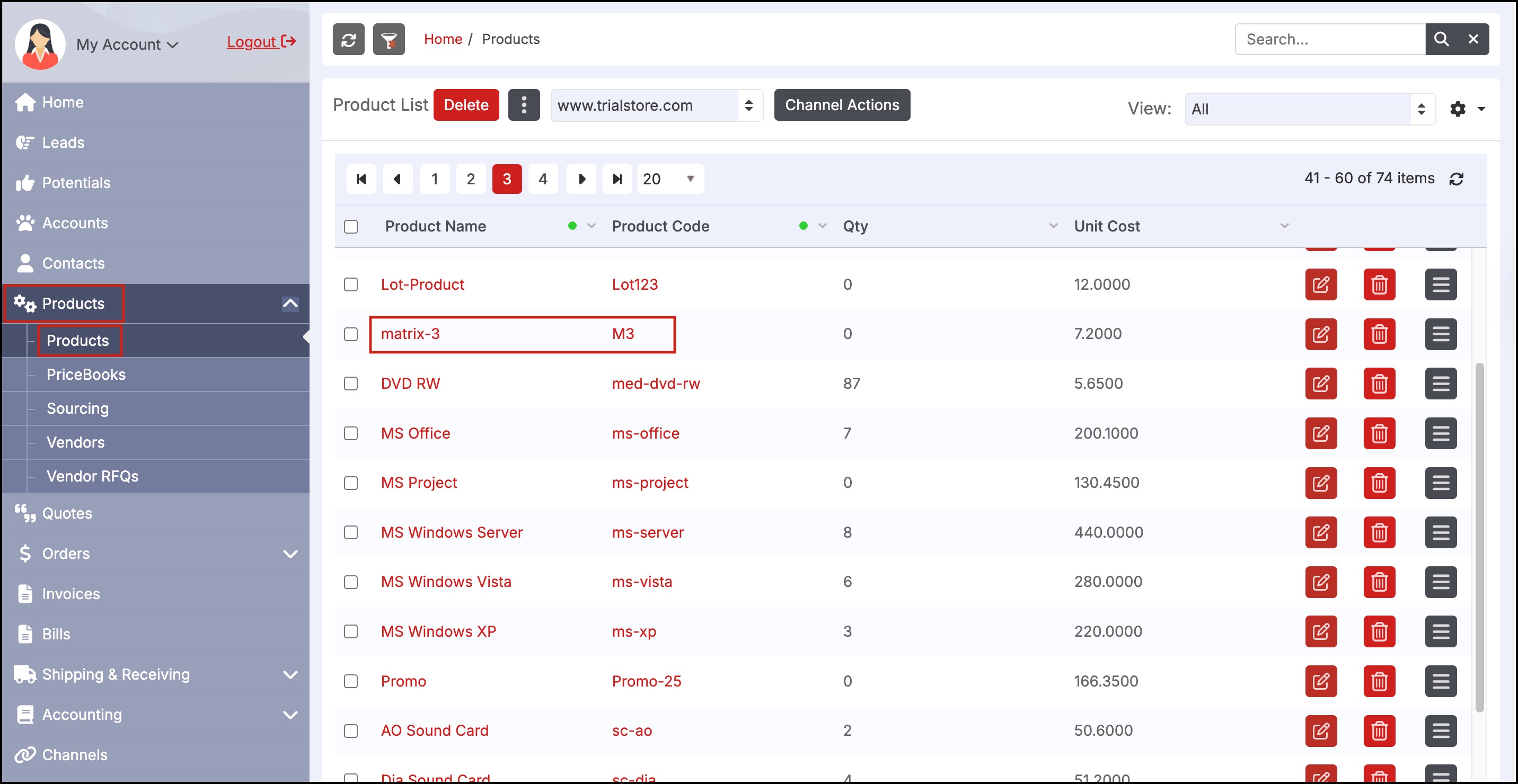

The new product will now be available in the app as well as will be visible in the back office's product list.
![](https://files.readme.io/d5654ed-matrix-10.jpg)
Note - On the Matrix Product's detail page -> go to the Matrix Item tab. You'll see the added bin locations to the respective stock locations.
